Biomek i7

進歩し続けるワークフロー特性に合わせた設計

世界中のユーザーの皆様から提案されたご意見を取り入れることで、Biomekは業界をリードする最良のリキッドハンドラーとなりました。Biomek i7自動分注ワークステーションは、ミドルからハイスループットのラボにおいて、信頼性と時間効率を最適化するようデザインされています。

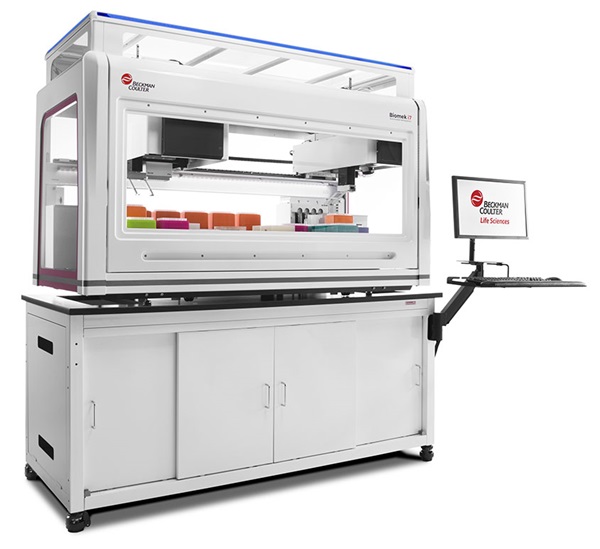

Biomek i7 Automated Liquid Handling Workstation

Spotlight Icon Features

特長
Supplies Tips

チップ
Spotlight Icon Software

ソフトウェア
video icon

動画

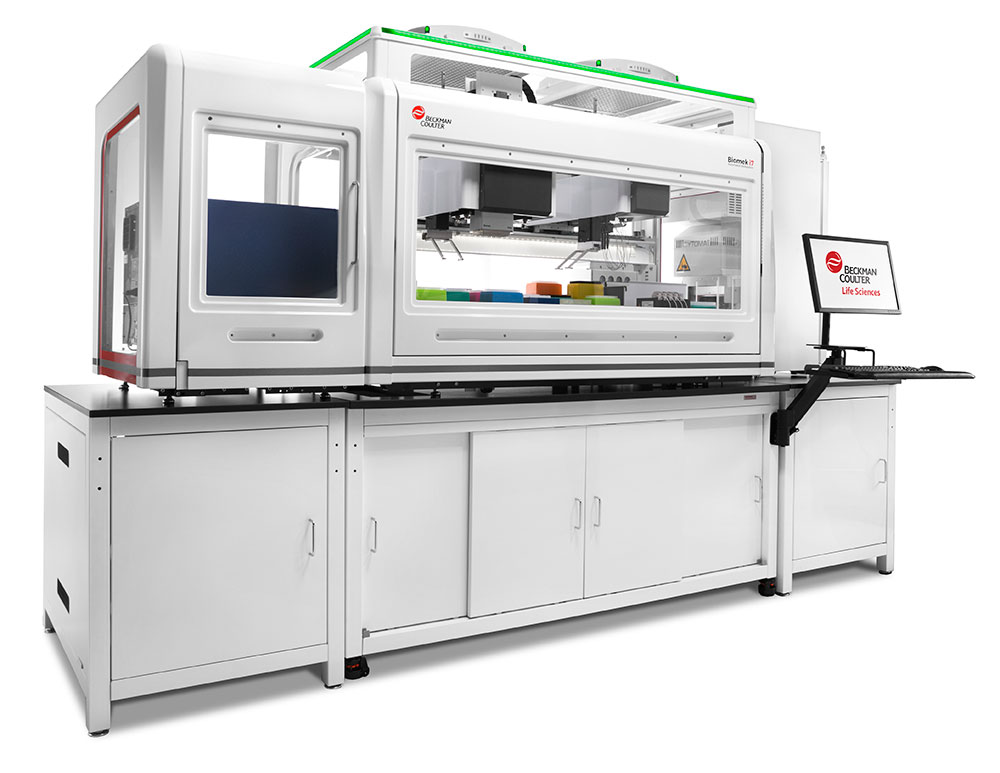

Spotlight Icon Integrated Systems

インテグレーションシステム
Spotlight Icon RFQ

見積を依頼
Spotlight Icon Technical Documents

技術資料
Spotlight Icon Training

トレーニング
Spotlight Icon FAQ

FAQ

Choose a Biomek i7 Model

特長

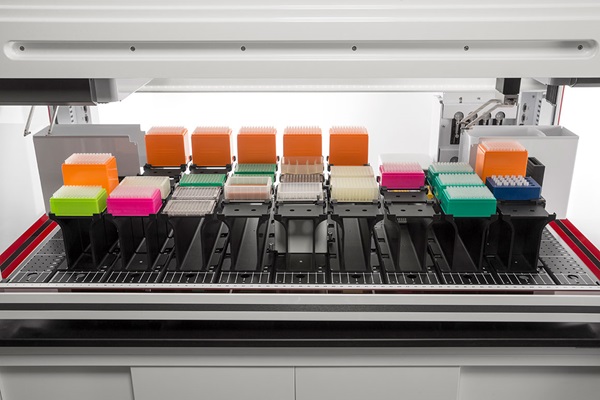

互換性のあるワークスペース

  • グリッドベースのデッキを備えた省スペースでオープンなプラットフォーム
  • 最大デッキ数：45ポジション
  • 内部LED照明
  • 自動ラボウェア・ポジショナー（ALP）によるプレート処理を実現
  • オプションの閉鎖モデルにより、気中粒子からのサンプル保護が可能
  • 4D インテグレーション機能
  • 特殊なアプリケーションも設定可能

柔軟な分注とワークフロー管理

  • マルチチャンネルヘッド（96/384/ピンツール）やSpan-8分注ヘッドを備えた、シングル／デュアルアームによる多重構成が可能
  • 大容量1 mLマルチチャンネルヘッド
  • 独自設計のオフセット回転グリッパーによる高アクセス
  • ディスポーザブルおよび固定型のBiomekピペットチップの使用が可能（セプタムピアッシングにも対応可能）
  • 0.5～5,000 µLの溶液をトランスファー可能
  • Span-8のプローブの独立したキャリブレーション
  • 8チャンネルの液面検知機能
  • チューブから1,536ウェルマイクロプレートにおよぶラボウェアをサポート
  • 正確なウェル内ピペッティング

シンプルなシステム操作

  • 既存のプロセスの自動化や迅速なワークフローの変更を容易に実施
  • データトラッキング機能やLIMS接続機能を備えたアイコンベースのソフトウエア搭載
  • OSはWindows 10 対応
  • プロセスの管理およびスケジュール作成を行うソフトウエアを用いてウォーク/アウェイ操作を拡張可能
  • ガイド付のシステムセットアップ
  • デッキ配置を自動化
  • データにより決定される、ヒットピッキングやノーマライズなどの操作メソッド
  • ライトカーテンによる安全機能
  • ステータスライトバーによるシステムの状態表示
  • ライブ、リモート監視、エラー発生時の録画が可能なオンボードカメラ

アプリケーションに焦点を合わせたソリューション

  • ワークフロー分析に関するコンサルティングの依頼が可能
  • エキスパートアプリケーション＆テクニカルサポート
  • ゲノム、創薬研究、基礎研究のワークフローのための実証済みBiomek自動化メソッドおよび機能

製品仕様

Minimum Table Support Requirements 1xcm(0xin)
Pod and Tool Type 1μL - 300 μL 96-Channel Head; 5 μL -1200 μL 96-Channel head; 0.5 μL - 60 μL Multichannel-384 Head
Tip Type T30_384; T25F_384; T50_384; T40F_384; T80_384; T40F; T80_LLS; T40F_LSS; T90; T50F; T90_LSS; T50F_LLS; T230; T230_LSS; T190F_LLS; T230_WB; T1070; T1020_WB
Operating System Windows® 10
Software Biomek software, SAMI EX scheduling software, Biomek PowerPack software, Biomek Method Launcher, DART 2.0 software
Display 22" controller screen
Operating Modes Semi-automated, manual, controlled by operator
Item Specifications Referenced B87580
