スウィングロータ JS-13.1
Product No:346963
使用可能機種：
Avanti J-26S XP / J-E / JXN-26 / JXN-30
主なアプリケーション：
バクテリア、培養組織の抽出、細胞内小器官の分画密度勾配遠心による細胞膜分離
- 最高回転数 - 13,000 rpm
- 最大遠心力 - 26,500 x g
- kファクタ値 - 1,841
- チューブの 本数 x 容量／サイズ：
- 6 x 50 mL
- 29 x 104 mm
- 最大ロータ容量 - 300 mL
¥1,408,000 (税抜) List Price - ¥1,408,000
Resources + Tools
製品仕様
| Platform | Avanti |
| Rotor Type | Swinging-Bucket (High Performance) |
| Maximum RPM | 13,000 rpm |
| Max g-Force | 26,500 xg |
| k-Factor | 1,841 |
| Adapters | 342327, 344497, 356970, 356976, 870329 |
| Nominal Capacity | 300mL |

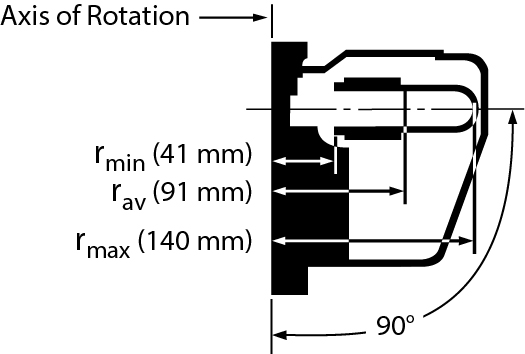

| rMAX | 140 |
| rMIN | 41 |
| rAV | 91 mm |
