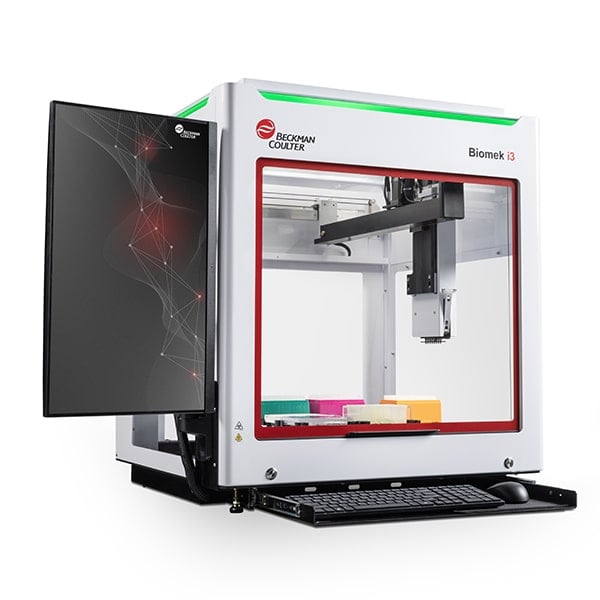

Biomek i3 Benchtop Liquid Handler, 8-channel with Enclosure
Product No:D22660
The base model of Biomek i3 benchtop liquid handler includes 12 standard and 3 short static automated labware positioners (ALPs), an integrated gripper, and an 8-channel pipetting pod for efficient tip-based automated liquid handling.
Resources + Tools
製品仕様
| Minimum Table Support Requirements | 73.2 x 78.5 cm (28.8 x 30.9 in) |
| Color | White |
| Platform | Biomek i-Series |
| Installation Category | Category II |
| Power Requirements | Base Unit: 100–240 VAC, 3 A, 50/60 Hz, Automation Controller: 100–240 VAC, 2.5 A, Monitor: 100–240 VAC, 1 A |
| Client PC Operating System | Windows® 11 |
| Software | Biomek Software (pre-installed) , DART 2.0 (optional) |
| Display | Arm-mounted touchscreen monitor |
| Material(s) | Top and sides: painted aluminium , Door handle: painted steel , Door panel: acrylic with vinyl application |
| Weight | Base instrument: 49.89 kg (110 lbs) | Fully assembled instrument with full deck: 64.41 kg (142 lbs) |
| Width | 73.2 cm (28.8 in) |
| Depth | 78.5 cm (30.9 in) |
| Height | 82.6 cm (32.5 in) with door closed | 128.5 cm (50.6 in) with door open |
| Package Quantity | 1 |
| Humidity Restrictions | 20%–80% (non-condensing) at 30°C |
| Deck Capacity | 15 pipettable and 5 flex positions |
| Independent Tip Loading | Yes |
| Pipetting Volume Range | 1 - 1,000 µL |
| Enclosure | Yes |
| Pipetting Heads and Pods | 1 - 1,000 μL Fixed-8 Pod |
| Number of Grippers | 1 |
| HEPA Filtration (optional) | Positive pressure or negative pressure |
| Additional Features |
|
| Compatible Tip Types | P20, P20 Conductive, P50, P50 Conductive, P250, P250 Wide Bore, P250 Conductive, P1000, P1000 Wide Bore, P1000 Conductive Disposable Tips |
