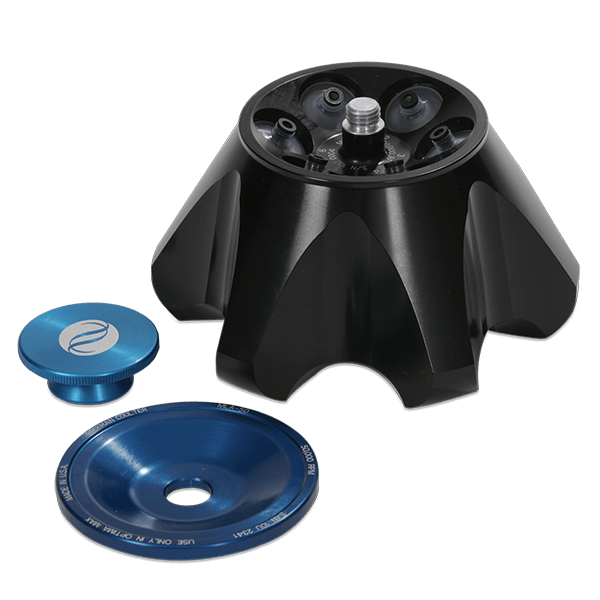

固定角ロータ MLA-50
Product No:A91774
使用可能機種：
Optima MAX-XP
主なアプリケーション：
大容量の細胞内小器官およびウィルスのペレッティング
- 最高回転数 - 50,000 rpm
- 最大遠心力 - 233,000 x g
- k ファクタ値 -92
- チューブの 本数 x 容量／サイズ：
- 6 x 29.9 mL
- 25 x 77 mm
- 最大ロータ容量 - 194.4 mL
¥1,066,000 (税抜) List Price - ¥1,066,000
Resources + Tools
製品仕様
| Platform | Tabletop UCF |
| Rotor Type | Fixed-Angle (Ultracentrifugation) |
| Angle | 30 |
| Maximum RPM | 50,000 rpm |
| Max g-Force | 233,000 x g |
| k-Factor | 92 |
| Adapters | 303307, 303392, 330860, 343448, 361669 |
| Number of Tubes | 25 x 77 mm, 6 x 32.4 mL |
| Caps and Spacers | 361669 │ 343448 |
| Nominal Capacity | 194.4mL |

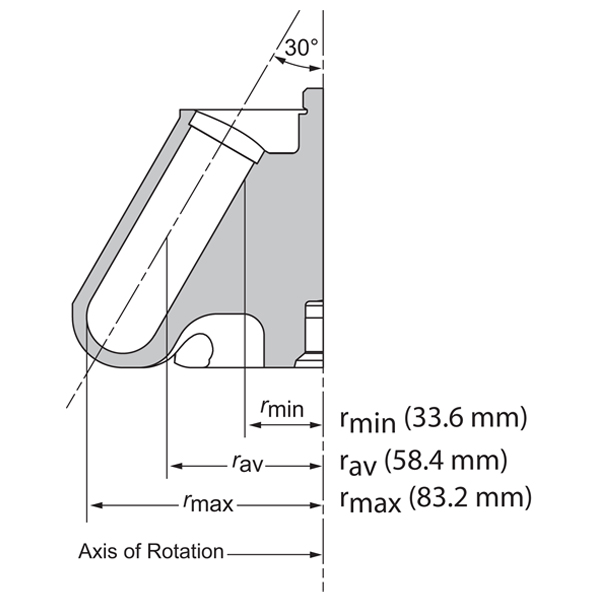

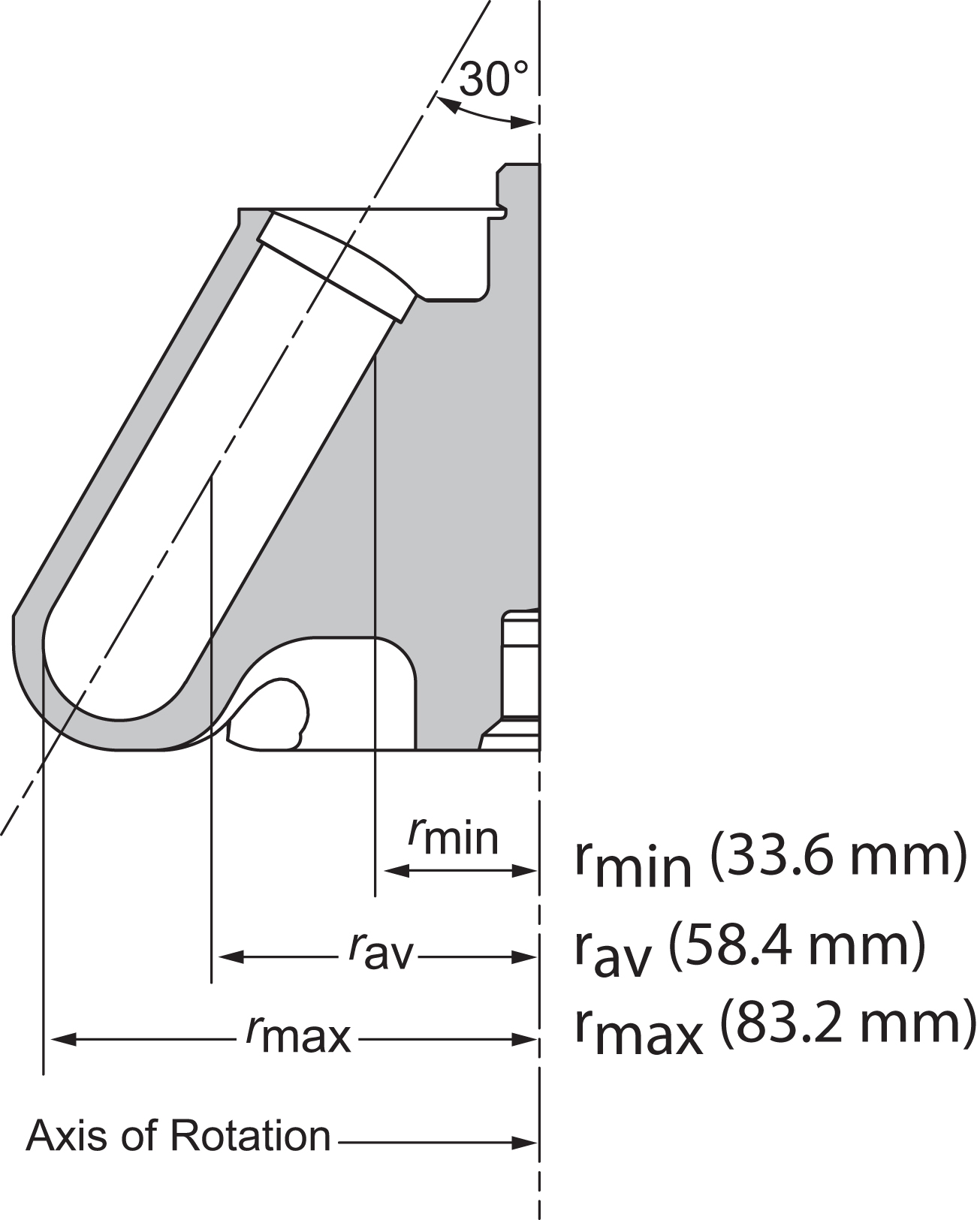

| rMAX | 83.2 |
| rMIN | 33.6 |
| rAV | 58.4 mm |
| BioSafe | Bio-Enhanced |
| Materials | Aluminum |
| Package Quantity | 1 |
関連製品・パーツ
13.5 mL Open-Top Thinwall Polypropylene Tube, 16 x 76mm - 50Pk
13.5 mL, Open-Top Thinwall Polypropylene Tube, 16 x 76mm - 50Pk
6.5 mL Open-Top Thinwall Polypropylene Tube, 13 x 64mm - 50Pk
6.5 mL, Open-Top Thinwall Polypropylene Tube, 13 x 64mm - 50Pk
15 mL Quick-Seal® Bell-Top Polypropylene Tube, 25 x 38mm - 50Pk
15 mL, Quick-Seal® Bell-TopPolypropylene Tube, 25 x 38mm - 50Pk
27 mL Quick-Seal® Bell-Top Polypropylene Tube, 25 x 64mm - 50Pk
27 mL, Quick-Seal® Bell-TopPolypropylene Tube, 25 x 64mm - 50Pk
27 mL Quick-Seal® Bell-Top Ultra-Clear Tube, 25 x 64mm - 50Pk
27 mL, Quick-Seal® Bell-Top Ultra-Clear Tube, 25 x 64mm - 50Pk
15 mL Quick-Seal® Bell-Top Ultra-Clear Tube, 25 x 38mm - 50Pk
15 mL, Quick-Seal® Bell-Top Ultra-Clear Tube, 25 x 38mm - 50Pk
10 mL Open-Top Thickwall Polycarbonate Tube, 16 x 76mm - 25Pk
Open-Top Thickwall Polycarbonate Tube For use in Benchtop Centrifuge Rotors: F1010 (Part Number 361221) FX6100 (Part Number 369735)
10 mL Open-Top Thickwall Polypropylene Tube, 16 x 76mm - 25Pk
10 mL, Open-Top Thickwall Polypropylene Tube, 16 x 76mm - 25Pk
4 mL Open-Top Thickwall Polypropylene Tube, 13 x 64mm - 25Pk
4 mL, Open-Top Thickwall Polypropylene Tube, 13 x 64mm - 25Pk
4 mL Open-Top Thickwall Polycarbonate Tube, 13 x 64mm - 25Pk
4 mL, Open-Top Thickwall Polycarbonate Tube, 13 x 64mm - 25Pk
15 mL Quick-Seal®, g-Max Polypropylene Tube Kit, 25 x 38mm - 50Pk
15 mL, Quick-Seal® g-Max Polypropylene Kit, 25 x 38 mm - 50Pk
27 mL Quick-Seal® g-Max Polypropylene Tube Kit, 25 x 64mm - 50Pk
27 mL, Quick-Seal® g-Max Polypropylene Kit, 25 x 64 mm - 50Pk
16mm Diameter Delrin Tube Adapter, Quantity of One
Adapter for Tubes in Beckman Coulter Rotors for use in Ultracentrifuge Rotors: Type 70 Ti (part # 337922), Type 50.2 Ti (part # 337901)
Required Adapter for Tubes:
13.5 mL Thinwall Polypropylene Centrifuge Tube, 16 x 76 mm; Required Cap/Spacer 330860 (part # 326814)
10-mL Thickwall Polypropylene Centrifuge Tube, 16 x 76 mm; Required Cap/Spacer 338907* (part # 355640)
10 mL Thickwall Polycarbonate Centrifuge Tube, 16 x 76 mm; Required Cap/Spacer 338907* (part # 355630)
13.5 mL Ultra-Clear Centrifuge Tube, 16 x 76 mm; Required Cap/Spacer 330860 (part # 344085)
*Caps are optional for these Thickwall tubes. In the Type 70 Ti, the filling level for 355640 and 355630 is 7.5 mL. In the Type 50.2 Ti, the filling level for 355640 and 355630 is 8 mL. Maximum speeds for these open-top tubes without a cap: Polycarbonate—45,000 RPM. Polypropylene—20,000 RPM. These speeds are those which the tubes could withstand when tested at 25°C for 24 hours. Further tests have shown that the polycarbonate tube can run at 50,000 RPM for four hours.
13mm Diameter Delrin Tube Adapter, Quantity of One
Adapter for Tubes in Beckman Coulter Rotors for use in Ultracentrifuge Rotors: Type 70 Ti (part # 337922), Type 50.2 Ti (part # 337901)
Required Adapter for Tubes: Thinwall Polypropylene Centrifuge Tube, 13 x 64 mm; Required Cap/Spacer 346256 (part # 326820) Thickwall Polypropylene Centrifuge Tube, 13 x 64 mm (part # 355644), Thickwall Polycarbonate Centrifuge Tube, 13 x 64 mm (part # 355645), Ultra-Clear Centrifuge Tube, 13 x 64 mm; Required Cap/Spacer 346256 (part # 344088)
13.4mm Diameter Aluminum Tube Cap Assembly, Quantity of One
This accessory is required for the Thinwall Polypropylene Ultracentrifuge Tube (part # 326814) and Thinwall Ultra-Clear Ultracentrifuge Tube (part # 344085)
Adapter for Tubes in Beckman Coulter Rotors for use in Ultracentrifuge Rotors:
Type 70 Ti (part # 337922)
Type 50.2 Ti (part # 337901)
Type 45 Ti (part # 339160)
.
