固定角ロータ TLA-110
Product No:366735
使用可能機種：
Optima MAX-XP / TL
主なアプリケーション：
中容量の細胞内小器官およびウィルスのペレッティング
- 最高回転数 - 110,000 rpm
- 最大遠心力 - 657,000 x g
- k ファクタ値 - 13
- チューブの 本数 x 容量／サイズ：
- 8 x 5.1 mL
- 13 x 51 mm
- 最大ロータ容量 - 40.8 mL
¥1,271,000 (税抜) List Price - ¥1,271,000
Resources + Tools
製品仕様
| Platform | Tabletop UCF |
| Rotor Type | Fixed-Angle (Ultracentrifugation) |
| Angle | 28 |
| Maximum RPM | 110,000 rpm |
| Max g-Force | 657,000 xg |
| k-Factor | 13 |
| Adapters | 360270, 360951, 361676, 362307, 393238 |
| Number of Tubes | 13 x 51 mm, 8 x 5.1 mL |
| Nominal Capacity | 40.8mL |

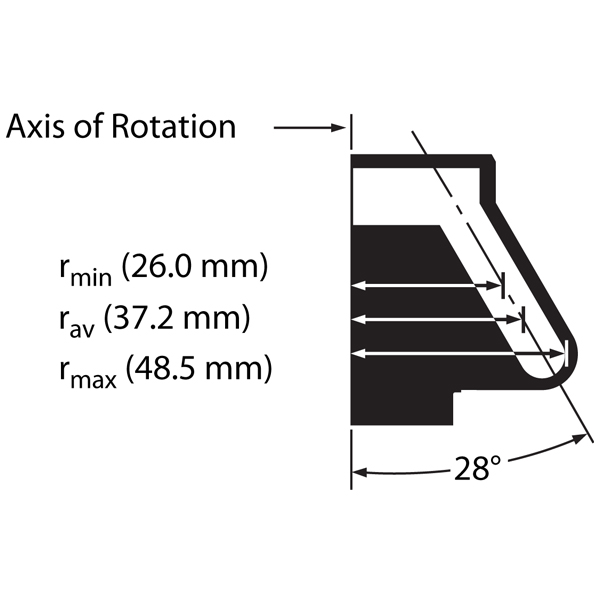

| rMAX | 48.5 |
| rMIN | 26 |
| rAV | 37.2 mm |
| BioSafe | Yes - With BioSafe Lids |
| Materials | Titanium |
| Package Quantity | 1 |
関連製品・パーツ
0.5 mL Open-Top Thickwall Polycarbonate Tube, 34 x 8mm - 100Pk
Thickwall Polycarbonate Tubes For use in Ultracentrifuge Rotors: TLA-120.1
2 mL Quick-Seal® g-max Polypropylene Tube, 13 x 25mm - 50Pk
2 mL, Quick-Seal® g-max Polypropylene Tube, 13 x 25mm - 50Pk
3.5 mL Quick-Seal® Bell-Top Polypropylene Tube, 13 x 31.5mm - 50Pk
3.5 mL, Quick-Seal® Bell-Top Polypropylene Tube, 13 x 31.5mm - 50Pk
1.5 mL Polypropylene Tube with Snap-on Cap, 11 x 39mm - 500Pk
Polypropylene Tube (also known as Microfuge; Tube, Polypropylene; and Microcentrifuge Polypropylene Tube) with Snap-On Cap, Natural color. Adapters are reversible, so that tube angle can be set at either 45 or 25.
4.7 mL OptiSeal™ Polypropylene Tube, 13 x 48mm - 56Pk
4.7 mL, OptiSeal™ Polypropylene Tube, 13 x 48mm - 56Pk
3.2 mL Open-Top Thickwall Polycarbonate Tube, 13 x 56mm - 50Pk
3.2 mL, Open-Top Thickwall Polycarbonate Tube, 13 x 56mm - 50Pk
3.2 mL Open-Top Thickwall Polypropylene Tube, 13 x 56mm - 50Pk
3.2 mL, Open-Top Thickwall Polypropylene Tube, 13 x 56mm - 50Pk
13 mm Diameter Noryl Floating Tube Spacer, Quatity of Eight
Spacer for Use in Beckman Coulter Rotors for use in Ultracentrifuge Rotors: Type 100 Ti, TLA-110, TLA-100.3
Spacer Required for Tube:
(part # 362248) 5.1 mL Quick-Seal Polypropylene Tube, 13 x 51 mm
(part # 363960) 5.1 mL Quick-Seal Polypropylene Tube, 13 x 51 mm
(part # 349621) 3.5 mL Quick-Seal Polypropylene Tube, 13 x 32 mm
(part # 363961) 3.5 mL Quick-Seal Polypropylene Tube, 13 x 32 mm
(part # 345829) 2.0 mL Quick-Seal Polypropylene Tube, 13 x 25 mm
(part # 363962) 2.0 mL Quick-Seal Polypropylene Tube, 13 x 25 mm
To simplify ordering, this g-Max Kit includes enough spacers to fill rotor, 50 tubes and required tools.
11mm Diameter Delrin Tube Adapter , Quantity of Eight
Adapters for Tubes in Beckman Coulter Rotors for use in Ultracentrifuge Rotors: TLA-110
Required Adapter for Tubes: (part # 357448) 1.5 mL Microcentrifuge Polypropylene Tube, 11 x 39 mm.
13 mm Diameter Ultem Tube Spacer, Quantity of Two
Spacer for Tubes in Beckman Coulter Rotors for use in Ultracentrifuge Rotors: Type 50.4Ti, TLA-110.
Required Spacer for Tubes: (part # 361621) 4.7 mL OptiSeal Polypropylene Bell Top Tube, 13 x 48 mm.
13 mm Diameter Delrin Floating Tube Spacer, Quantity of Eight
Floating Spacers for Beckman Coulter Rotors for use in Ultracentrifuge Rotors: TLA-110
Required Spacer for Tubes:
(part # 362448) 5.1 mL Quick-Seal Polypropylene Bell Top Tube, 13 x 51 mm
(part # 363650) 6.8 mL Quick-Seal Polypropylene Tube, 13 x 64 mm
